444-75 Low Band Antenna
SKU 444-75
444-75
Low-Band-Disguised
Download Product Specs
Individually calibrated to ensure the best performance in a disguised appearance
- Two or three separate frequency segments in a given mobile band
- Cross-channel operation in two mobile bands with one antenna
- Alternative antennas to an OEM version will be recommended, where required (e.g. Euro-style, or universal mount traditional whip)
Description
Comprod supplies disguised antennas using an OEM antenna combined with a tuning circuit integrated with the coaxial cable. Each antenna assembly is individually calibrated to ensure the best performance in a disguised appearance, which will be completely undetectable from the original’s vehicle’s appearance. There is an optional broadcast coupler to provide an antenna that can offer both two-way radio communication in addition to AM/FM receiver functions. The antenna may also be modified to provide multi-band two-way communication. We are capable of meeting customers' special requirements:
-
- Two or three separate frequency segments in a given mobile band.
- Cross-channel operation in two mobile bands with one antenna.
- Alternative antennas to an OEM version will be recommended, where required (e.g. Euro-style, or universal mount traditional whip).
Additional information
| Frequency Range, MHz | 27-50 |
|---|---|
| Nominal Gain | Unity |
| Bandwidth (1.5 to 1 VSWR), MHz | 0.60 |
| Power Rating, Watts | 150 |
| Radiator | Per OEM antenna |
| Length, in | Per OEM antenna |
| Feed Line | 17 ft. RG58/U |
| Connector Options (customer specified) | UHF / Mini-UHF / BNC / TNC |

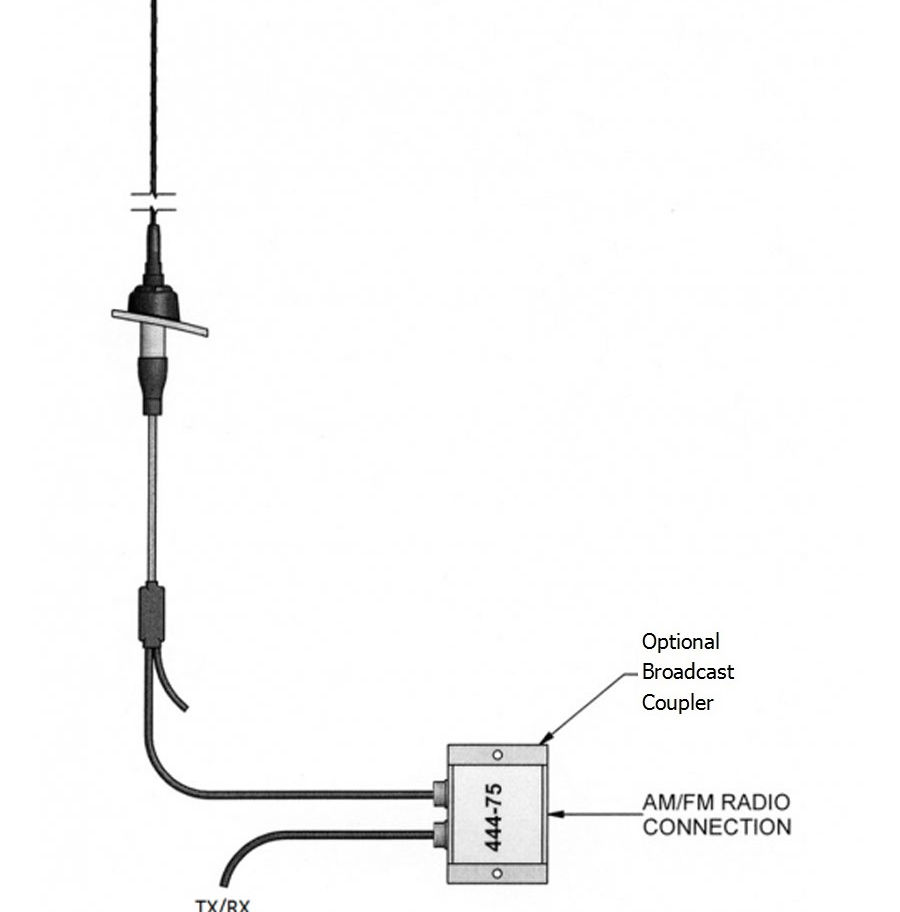

| Broadcast Coupler (optional) | Model 444-75 |
Ordering Information
