526-90 VHF Compact Mobile Duplexer
526-90
526-90
Download Product Specs
The Comprod 526-90 is a 1 inch 6 cavity VHF compact size mobile duplexer. Featuring low loss and temperature compensation over the range of -22 F to +140 F. The use of extruded aluminum cavities and solid shield copper jacketed inter-cabling assure excellent mechanical and electrical stability.
- All units are field tunable and rated at 50 watts continuous duty
with a maximum VSWR of 1.5: 1 over the entire tuning range.
- BNC connectors are standard.
Variations on connectors and mountings are available on special order.
Ordering info: 526-90 *1 (144-165 MHz), 526-90*2 (160-174 MHz)
Description
The Comprod 526-90 is a 1 inch 6 cavity VHF compact size mobile duplexer. Featuring low loss and temperature compensation over the range of -22 F to +140 F. The use of extruded aluminum cavities and solid shield copper jacketed inter-cabling assure excellent mechanical and electrical stability.
- All units are field tunable and rated at 50 watts continuous duty
with a maximum VSWR of 1.5: 1 over the entire tuning range.
- BNC connectors are standard.
Variations on connectors and mountings are available on special order.
Ordering info: 526-90 *1 (144-165 MHz), 526-90*2 (160-174 MHz)
Additional information
| Frequency Range, MHz | 144-165 MHz\, 160-174 MHz |
|---|---|
| Frequency Spacing Min., MHz | 4.5 |
| Continuous Power Input, Watts | 50 |
| Insertion Loss, dB: TX to Antenna | 1.5 |
| Insertion Loss, dB: RX to Antenna | 1.5 |
| Channel Isolation, dB: TX Noise Suppression at RX Frequency | 70 |
| Channel Isolation, dB: RX isolation at TX | 70 |
| Max. VSWR, Ohms | 1.5:1 |
| Temperature Range, ºC | – 30 to +60 |

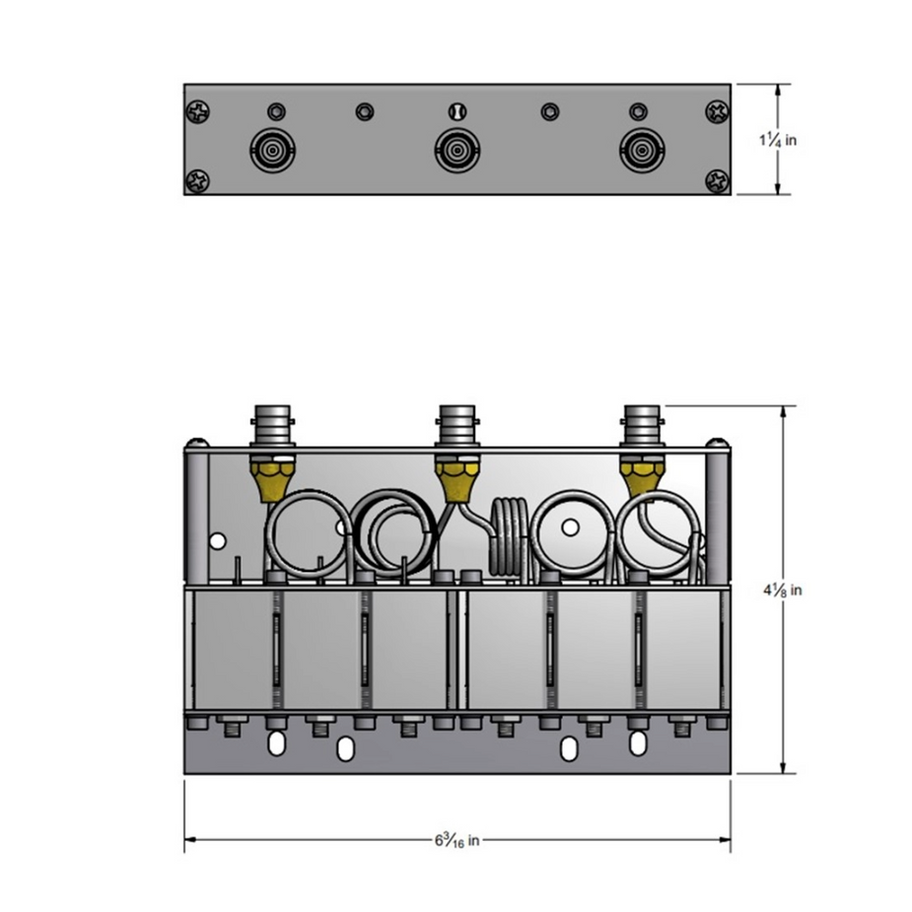

| Dimensions, H x W x D, in (mm) | 1.25 x 6.19 x 4.125 (31.8 x 157.22 x 105) |
| Weight, lbs (kg) | 1.5 (0.7) |
| Frequency Range | 144-174 MHz |
| Mounting Information | Shelf/Mobile |
| Termination | BNC-Female |
Ordering Information
526-90 *1 (144-165 MHz)
526-90*2 (160-174 MHz)
