872F-70-F Exposed Dipole (FM)
SKU 872F-70-F
872F-70-F
871F-70-F-872F-70-F-874F-70-F
Download Product Specs
Adjustable, fixed, side or top mount antenna
- Offered in a 1/4 or 3/8 wave spacing version
- The 872A-70-F has external cabling and a field-adjustable pattern.
- The 872F-70-F has internal cabling and fixed dipole-mast spacing.
- Heavy-duty and black anodized versions available
Description
The 870 FM exposed dipole series are available in 1, 2, 4 dipole configurations. All of our antennas can be completely customized to your particular applications. Our antennas can be black anodized. Adjustable, or fixed, side or top mount, and many version of heavy-duty ruggedness. • Each antenna is offered in a 1/4 or 3/8 wave spacing version. • The 872A-70-F has external cabling and a field-adjustable pattern. • The 872F-70-F has internal cabling and fixed dipole-mast spacing. • Heavy-duty versions are available. Please contact a technical support technician for consultation.
Additional information
| Frequency Range, MHz | 88-108 |
|---|---|
| Nominal Gain, dBd | 5.0-5.5 |
| Bandwidth: 1.5:1 VSWR, MHz) | 20 |
| Number of Dipoles | 2 |
| Polarization | Vertical |

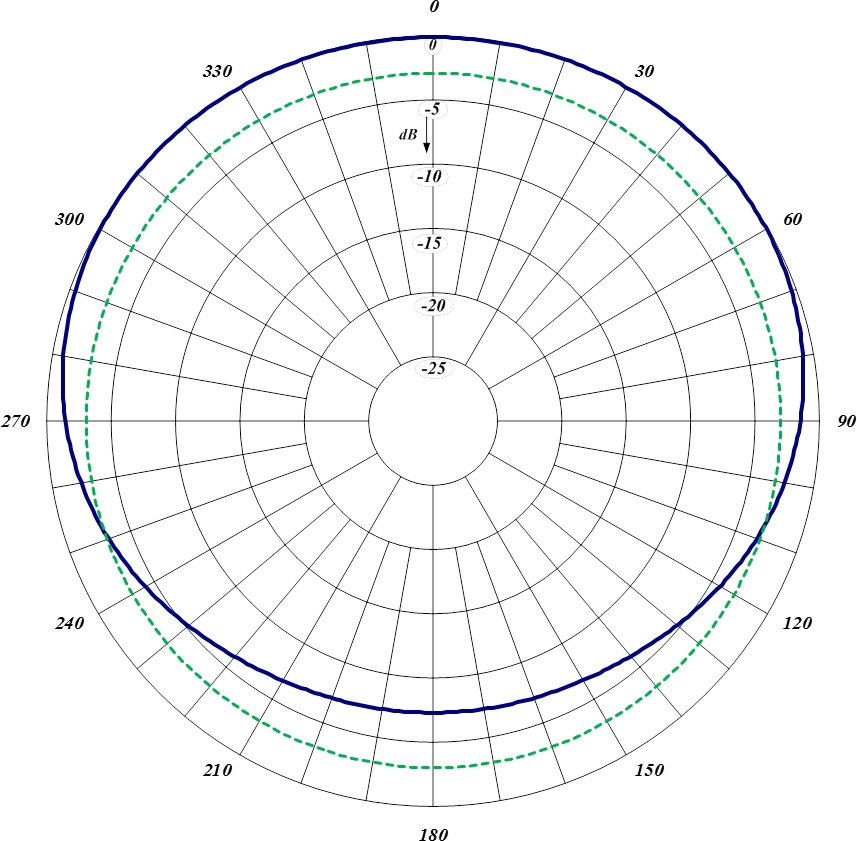

| Pattern | Offset |
| Power Rating, Watts | 450 |
| Nominal Impedance, Ohms | 50 |
| Lightning Protection | DC Ground |
| Standard Termination | N Male\, other connectors available upon request |
| Length, in (mm) | 198 (5029) |
| Width (3/8 Wave Spacing), in (mm) | 47 (1194) |
| Weight, lbs (kg) | 37 (16.8) |
| Rated Wind Velocity: no ice, mph (km/h) | 128 (206) |
| Rated Wind Velocity: 0.5" (13 mm) Ice, mph (km/h) | 100 (161) |
| Lateral Thrust @ 100 mph wind, lbs (kg) | 139 (63) |
| Bending Moment @ top clamp: 100 mph, ft*lb (kg*m) | 596 (82) |
| Projected Area, ft² (m²) | 5.3 (0.49) |
| Mounting Information Mast O.D. | 2.4" (61mm) |
| Frequency Range | 27-108 MHz |
| Nominal Gain | 4-6 dBd |
| Antenna Pattern | offset |
Ordering Information
| Order Information | Adjustable |
Heavy-duty | Side Mount | Top Mount | Black Anodized |
| 872F-70-F | 872A-70-F | 872F-70-FHD | 872F-70-FSM | 872F-70-FTM | 872F-70-FHDB |
